range 88 stainless bag housings

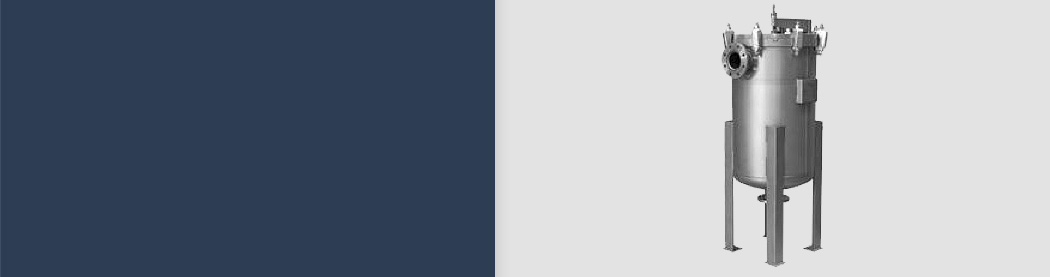

Range 88 Stainless Steel Bag Filter Housing

Our most robust and durable filter housing, the range 88 is a multi bag filter housing and allows for 4, 6, 8 or 12 bag to be in service at any one time. Because of the additional bag filter function, this system is capable of dealing with high flow rates of up to 10 bars per gallon and increased turbidity. The system is designed with a bottom and side outlet connection allowing for free draining and frequent process changes. This system is well suited and commonly used with the paint/ varnish, chemical and petrochemical industries.

The design and quality of this unit is second to none and it has proven itself to be a well-rounded and versatile system that is used for industry applications across the world. This particular housing is compatible with all bag filters ranging from 1 – 1000µm in lengths of 16” (Single length), 32” (Double length) and 48” (Triple length)

Range 88 - Single Bag Type
Part Number88041UJB40C1BE
Max Flow Rate48 m3/hr
Connection4" BS4504 PN16
Bag Type4 x Single 7" Diameter Ring
No of bags4
GasketEPDM
Max Pressure10 bar
Range 88 - Double Bag Type
Part Number88042UJB40C1BE
Max Flow Rate100 m3/hr
Connection4" BS4504 PN16
Bag Type4 x Double 7" Diameter Ring
No of bags4
GasketEPDM
Max Pressure10 bar
Range 88 - Triple Bag Type
Part Number88043UJB40C1BE
Max Flow Rate160 m3/hr
Connection4" BS4504 PN16
Bag Type4 x Triple 7" Diameter Ring
No of bags4
GasketEPDM
Max Pressure10 bar

Range 88 Features

Standard bolted style closure

Conventional dished end to aid clean down

Bead blasted finish inside and outside

Wide range of options available for connection sizes, types and materials of construction

Positive bag sealing mechanism to minimise risk of seal bypass

Robust bag support basket assembly fabricated from perforated sheet rather than wire mesh for extra strength

Rated at 10 bar liquid

PED and ATEX Compliant

Wide range of options available for connection sizes and types and materials of construction

Each housing is etched with a unique serial number for full traceability

Full housing customisation service available
