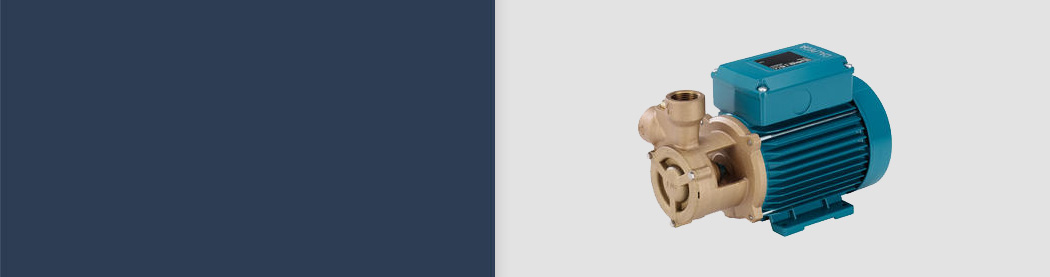

Calpeda CT Range
Close-coupled peripheral pump (regenerative pump) with turbine impeller.
FLOW
0.48 / 2.3 mc/h
HEAD
3 / 41 m
POWER
0.33 kW
Construction: Close-coupled peripheral pump (regenerative pump) with turbine impeller. Compact, patented construction with single piece motor casing and pump-side wall.
Protected against water entering the motor from outside.
CT: version with pump casing in cast iron.
B-CT: version with pump casing in bronze (the pumps are supplied fully painted).
CP TECHNICAL DATA
– For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials.
– For increasing network pressure (follow local specifications).
– For the reduced dimensions, these pumps are very well suitable to be mounted in cooling and air-conditioning machines and equipments, circulation.
Calpeda T, TP Range
Close-coupled peripheral pumps (regenerative pumps) with turbine impeller.
FLOW
0.06 / 6 mc/h
HEAD
5 / 165 m
POWER
0.33 / 7.5 kW
Construction : Close-coupled peripheral pumps (regenerative pumps) with turbine impeller.
T, TP: version with pump casing and lanter bracket in cast iron.
B-T, B-TP: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).
T, TP TECHNICAL DATA
– For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials.
– For increasing network pressure (follow local specifications).
– For the reduced dimensions, these pumps are very well suitable to be mounted in cooling and air-conditioning machines and equipments, circulation, boiler feed.
Calpeda I-IR Range
Close-coupled gear pumps (rotary pumps).
FLOW
0.60 mc/h
HEAD
20 / 50 m
POWER
0.25 / 0.75 kW
Construction : Close-coupled gear pumps (rotary pumps).
Pump casing with suction and delivery connections with the same diameter and on the same axis (in-line execution).
I-IR TECHNICAL DATA
– For fuel oil and liquids with lubricating properties.
