Fleck Simplex 5600 Water Softener

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

£370.50£669.00

Your are here : Home | Products & Systems | Water Softeners | Fleck Simplex | Fleck Simplex 5600


Water Softeners | Fleck Simplex 5600

Clear
SKU: S10-FLS56 Category:

Overview

Fleck Simplex 5600 Water Softener

Units come supplied with:

  • Fleck 5600 Softener Control Valve – either Time Clock or Metered
  • Appropriate size of WRAS approved resin vessel
  • Riser with bottom distributor attached to the riser tube and top basket (cut to vessel size)
  • Appropriate volume of Softener Resin
  • Appropriate size brine tank
  • Drain hose 3m
  • Brine fill/ Draw tube 3m

Installation is easy

  • Connect the inlet and the outlet
  • Connect the drain
  • Connect the brine system
  • Plug in the transformer

General conditions for installation

  • Inlet/ Outlet connection – ¾” BSP
  • Drain Connection – ½” Hose
  • Electrical Rating – 230-24V / 50 Hz
  • Power Rating – 8 watts
  • Min inlet pressure – 200 kPa (2bar)
  • Max inlet Pressure – 700 kPa (7bar)
  • Vacuum – Not permitted
  • Average Pressure Loss – 100 kPa (1bar)
  • Max Water Temp – 43ºc

General Information

The Fleck 5600 Simplex Water Softener Units are suitable for commercial, industrial and residential applications. All of our systems are either Time Clock or meter controlled (please select from the drop down menu)

The benefit of a meter controlled system is that it allows the system to calculate your water usage and instigate a regeneration cycle only when you have consumed enough water for the resin bed to be exhausted. These systems prevent any unnecessary water wastage and also ensure that your resin bed is never running past the state of exhaustion.

Timer controlled softeners allow you to set a particular time for regeneration and are also consistent and reliable.

We supply Simplex, Duplex, Triplex and bespoke water softening systems. Simplex systems are ideal in settings where it is not essential to have a soft water supply 24/7. During the regeneration process, your system is likely to be offline for at least 2 hours during which time, a simplex system will pass hard water until the regeneration process has finished. If the system is timer controlled, this can be manually set to a time that you are less likely to require soft water

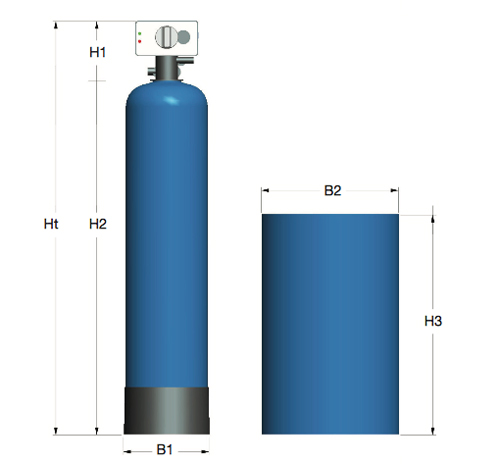

Dimensions (mm)
Resin LitresValve H1Vessel H2Vessel B1Brine Tank H3Brine Tank B2Softener HTInlet / Outlet
101864492087804306353/4″
1518690420878043010903/4″
2018690420878043010903/4″
2518690523378043010913/4″
3018690525778043010913/4″
35186112425778043013103/4″
40186112425778043013103/4″
50186138725778043015733/4″
60186123530478043014213/4″
75186137433483077015603/4″



General conditions for installation
Connection Inlet & Outlet¾” BSPM
Drain Connection *½” Hose
Electrical Rating230-24V / 50 Hz
Power Rating8 watts
Minimum Inlet Pressure200 kPa ( 2 Bar )
Maximum Inlet Pressure700 kPa ( 7 Bar )
VacuumNot permitted
Average Pressure Loss **100 kPa ( 1 Bar )
Maximum Water Temperature43ºc



* Open drain required
** It is recommended that a 20um Pre-cartridge filter be installed prior to the inlet of the water softener



Resin
TypeStrong acid cation resin – softening, food grade quality
Life Span15 years under normal operating conditions



Ion exchange
Litres of Resin10152025303540506075
Softener Capacity
as CaCO³
200ppm2.5m³3.7m³5.0m³6.2m³7.5m³8.7m³10m³12.5m³15m³18.7m³
250ppm2.0m³3.0m³4.0m³5.0m³6.0m³7.0m³8.0m³10m³12m³15m³
300ppm1.6m³2.5m³3.3m³4.1m³5.0m³5.8m³6.6m³8.3m³10m³12.5m³
Salt Conskg/reg1.21.82.433.64.24.867.29



Flow rate
Litres of Resin10152025303540506075
nominal m³/hr0.40.60.81.01.21.41.62.02.43.0
minimum metered60 Litres/Hour



Regeneration
Time Clock Version7 or 12 days ( 2.00am default time regeneration )
Volume Delayed or Immediate ¾” Meter8 or 40m³ ( delayed 2.00am default time regneration )
 SE/SXT Meter
ManualManual operation as required
Remarks:

The interval between regenerations should not be more than 4 days, this is to prevent bacteria growth.

Regenerations should be more than 8 hours apart.



Regeneration water usage
Litres of Resin 10152025303540506075
1) BackwashLitres2030404545757575105150
2) Brining + Slow RinseLitres30304530455585130120160
3) Fast RinseLitres2030407575959595135150
Total7090125150165225255300360460

Fleck 5600 Service Kit

Fleck Valve 5600 Service Kit
Seal and Spacer Kit
Injector O-Ring Kit
Piston Assy 4600/5600 LWU Fast Regen Blue
Riser Tube O-Ring
Tank Adapter O-Ring 5600/9000
Coupling O-Ring
£65.71Buy Now


Fleck 5600 Manual

Adobe PDF

1 Year Warranty

1 review for Fleck Simplex 5600 Water...

  1. Rated 5 out of 5

    Easy to use product, Arrived day after I ordered it.
    Well mannered and helpful staff who gave sound advice.

Add a review

Your email address will not be published. Required fields are marked *

What is a Simplex Water Softener?

A simplex water softener consists of one vessel containing ion exchange resin. Once the iron exchange resins are exhausted, the water softener will go into the regeneration sequence. During the regeneration sequence that takes about two hours, there will be no water passed through the softener to service. If the water softener is time controlled, it is possible to set the regeneration time to 3am when there is usually no requirement for water. If the water softener is a water meter controlled unit, it is more difficult to gage what time the water softener will regenerate. If a continuous supply of softened water is required, it is advisable to install a duplex water softener.

What is a Duplex Water Softener?

A duplex water softener consists of two vessels containing ion exchange resin, once the first column of resin has exhausted and goes into regeneration, the second column goes into service. This maintains soft water to service at all times. Duplex water softeners are usually water meter controlled but in some cases, duplex water softeners can be time clock controlled.
