Fleck Duplex 9500 Water Softener

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

£4,127.76£7,081.92

Your are here : Home | Products & Systems | Water Softeners | Fleck Duplex Fleck Duplex 9500


Water Softeners | Fleck Duplex 9500

Clear
SKU: S10-FLD95 Category:

Overview

Fleck Duplex 9500 Water Softener

Units come supplied with:

  • Fleck 9500 Softener Control Valve – either Time Clock or Metered
  • Appropriate size of WRAS approved resin vessel
  • Riser with bottom distributor attached to the riser tube and top basket (cut to vessel size)
  • Appropriate volume of Softener Resin
  • Appropriate size brine tank
  • Drain hose 3m
  • Brine fill/ Draw tube 3m

Installation is easy

  • Connect the inlet and the outlet
  • Connect the drain
  • Connect the brine system
  • Plug in the transformer

General conditions for installation

  • Inlet/ Outlet connection – 1 ½” BSP
  • Drain Connection – ¾” Hose
  • Electrical Rating – 230-24V / 50 Hz
  • Power Rating – 55 watts
  • Min inlet pressure – 200 kPa (2bar)
  • Max inlet Pressure – 700 kPa (7bar)
  • Vacuum – Not permitted
  • Average Pressure Loss – 100 kPa (1bar)
  • Max Water Temp – 43ºc



General Information

The Fleck 9500 Duplex Water Softener Units are suitable for Commercial, industrial and residential applications. All of our systems are either Time Clock or meter controlled (please select from the drop down menu)

The benefit of a meter controlled system is that it allows the system to calculate your water usage and instigate a regeneration cycle only when you have consumed enough water for the resin bed to be exhausted. These systems prevent any unnecessary water wastage and also ensure that your resin bed is never running past the state of exhaustion.

Timer controlled softeners allow you to set a particular time for regeneration and are also consistent and reliable.

We supply Simplex, Duplex, Triplex and bespoke water softening systems.

Duplex softeners are designed to produce a continuous and uninterrupted supply of softened water 24/7. To achieve this, these systems have a twin tank that work alternately so that there can always be one tank in service while the other thank is regenerating. These systems are particularly useful for industrial or commercial applications where stopping production for the regeneration process is simply not possible.

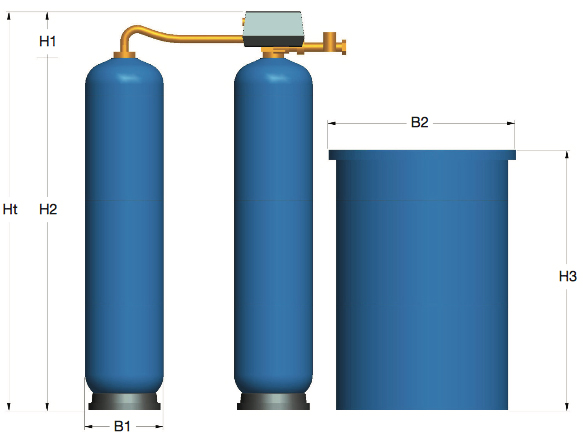

Dimensions (mm)
Resin Litres Valve
H1
Vessel
H2
Vessel
B1
Brine
Tank H3
Brine
Tank B2
Softener
Ht
Inlet/
Outlet
120 210 1660 369 1230 860 1870 1½”
140 210 1660 406 1230 860 1870 1½”
200 210 1640 510 1100 1000 1850 1½”
250 210 1640 510 1100 1000 1850 1½”
300 210 1890 610 1100 1000 2100 1½”
350 210 1890 610 1100 1000 2100 1½”





General conditions for installation
Connection Inlet & Outlet 1½” BSPF
Drain Connection * 3/4” BSPF
Electrical Rating 230-12V / 50 Hz
Power Rating 55 watts
Minimum Inlet Pressure 200 kPa ( 2 Bar )
Maximum Inlet Pressure 700 kPa ( 7 Bar )
Vacuum Not permitted
Average Pressure Loss ** 100 kPa ( 1 Bar )
Maximum Water Temperature 43ºc





* Open drain required
** It is recommended that a 20um Pre-cartridge filter be installed prior to the inlet of the water softener





Resin
Type Strong acid cation resin – softening, food grade quality
Life Span 15 years under normal operating conditions





Ion exchange
Litres of Resin 120 140 200 250 300 350
Softener Capacity
as CaCO³
200ppm 30m³ 35m³ 50m³ 62.5m³ 75m³ 87.5m³
250ppm 24m³ 28m³ 40m³ 50m³ 60m³ 70m³
300ppm 20m³ 23.3m³ 33.3m³ 41.6m³ 50m³ 58.3m³
Salt Cons kg/reg 15 17 24 30 36 42





Flow Rate
Litres of Resin   120 140 200 250 300 350
  nominal m³/hr 4.8 5.6 6.8 6.8 6.8 6.8
  peak m³/hr 6.9 8.3 8.0 8.4 8.4 8.4
minimum metered 300 Litres/Hour





Regeneration
Start Immediately after reaching the set capacity
Manual Manual operation as required

Volume Immediate 20 or 200 m³
  SE/SXT Meter

Remarks: The interval between regenerations should not be more than 4 days, this is to prevent bacteria growth.
Regenerations should be more than 8 hours apart.





Regeneration water usage
Litres of Resin   120 140 200 250 300 350
1) Backwash Litres 305 305 265 380 570 570
2) Brining + Slow Rinse Litres 215 250 450 440 330 675
3) Fast Rinse Litres 380 380 370 530 800 800
Total 900 935 1085 1350 1700 2045

Fleck 9500 Service Kit

Fleck Valve 9500 Service Kits include the following items :
Piston Assy Upper 9500
Seal & Spacer Kit Upper 9500
Piston Assembly Lower 9500
Seal & Spacer Kit Lower 9500
Injector Assy Cover Gasket
Injector Body Gasket
Brine Valve 1600 Assy 9500 Repair Kit
Microswitch
Microswitch
Microswitch
Microswitch
Tank Adaptor O-Ring 2850/9500
Riser Tube O-Ring


Fleck 9500 Manual

Adobe PDF

1 Year Warranty

1 review for Fleck Duplex 9500 Water...

  1. Rated 5 out of 5

    Pete Tooley

    Very helpful tech dept, Product arrived on time as promised.
    I would recommend both this product and company to all.
    Thank you.

Add a review

Your email address will not be published. Required fields are marked *

What is a Simplex Water Softener?

A simplex water softener consists of one vessel containing ion exchange resin. Once the iron exchange resins are exhausted, the water softener will go into the regeneration sequence. During the regeneration sequence that takes about two hours, there will be no water passed through the softener to service. If the water softener is time controlled, it is possible to set the regeneration time to 3am when there is usually no requirement for water. If the water softener is a water meter controlled unit, it is more difficult to gage what time the water softener will regenerate. If a continuous supply of softened water is required, it is advisable to install a duplex water softener.

What is a Duplex Water Softener?

A duplex water softener consists of two vessels containing ion exchange resin, once the first column of resin has exhausted and goes into regeneration, the second column goes into service. This maintains soft water to service at all times. Duplex water softeners are usually water meter controlled but in some cases, duplex water softeners can be time clock controlled.
