| Type: | Dosing Pump |
| Flow rate: | 5.000 l/h ; 22.01 gpm |
| Dosing: | 1 - 5 % |
| Dosing ratio: | 1:100 ; 1:20 |
| Operating pressure: | 0,3 - 8 bar ; 4.35 - 116 psi |
| Maximum static pressure: | 10 bar ; 145 psi |
| Temperature: | 5° - 40° C ; 41- 104° F |
| Installation: | Wall mounting |
| Metal Components: | AISI 316, Duplex |
| Plastic Components: | POM, PP, HDPE, PA12 |
| Seals: | Viton, EPDM Viton EXT |

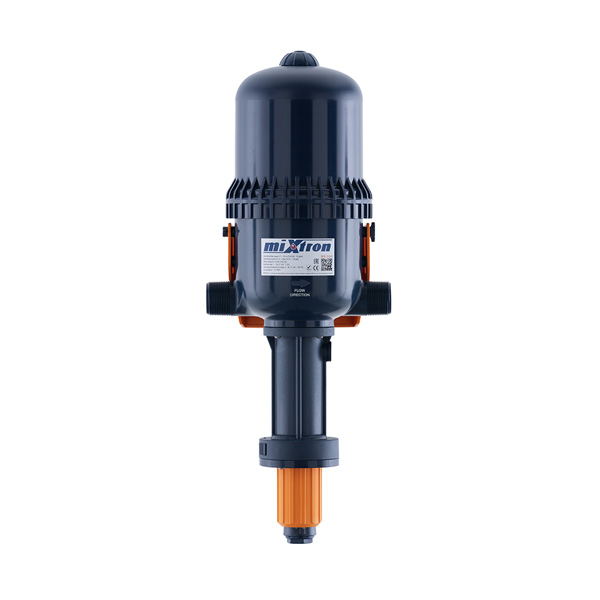

The dosing pump MX.500.P150 is designed to provide reliable and versatile performance in a wide range of industrial applications. With a flow rate of up to 5,000 litres per hour, this pump offers dosing accuracy ranging from 1% to 5%, with configurable dosing ratios of 1:100 and 1:20. The operating pressure of the pump ranges from 0.3 to 6 bar, while the maximum static pressure is 10 bar, ensuring stable operation even under high pressure conditions. In terms of operating range, the pump operates in a temperature range of 5°C to 40°C.
Designed for wall mounting, our pump is made of high-quality materials such as AISI 316 stainless steel and Duplex steel for the metal components, and POM, PP, HDPE and PA12 for the plastic ones, which provide corrosion resistance and durability. Viton and EPDM seals ensure an optimal seal and prevent leakage.
