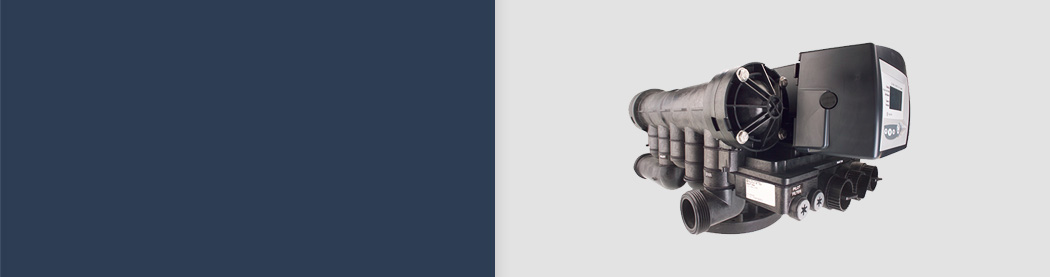

autotrol 298 series

Flow Rates (valve olny)
Service @15 psi (1.03 bar) drop17.3 m3/h
Backwash @ 25psi (1.72) bar drop20.2 m3/h
ServiceCv = 19.50 (Kv =17)
BackwashCv = 17.8 (Kv = 19.9)
Valve Connections / Dimensions
Tank Thread4 Inch 8 UN
Inlet / Outlet (Magnum IT)2 Inch connections NPT or BSPT, CPVC
Inlet / Outlet (Magnum CV)1.5 Inch connections NPT or BSPT, CPVC
Brine line3/4 Inch NPT
Drian line1.5 Inch connections NPT or BSPT, female CPVC
Riser tube diameter1.5 Inch
Riser installationAbove top of tank 16mm
Pilot drain and auxiliary hydraulic output1/4 Inch tube fitting
Design Specifications / Ratings
Valve bodyNoryl
O ringsEPDM
Injector7 Sizes available 14, 16, 18, 21, 24, 30, 36
Working pressure1.72 bar - 6.9 bar
Water temperature2 - 38 ºC, 49 ºC ambient
